Warwick RockBoard ISO Power Block V10 - Isolated Multi Power Supply

$135.00

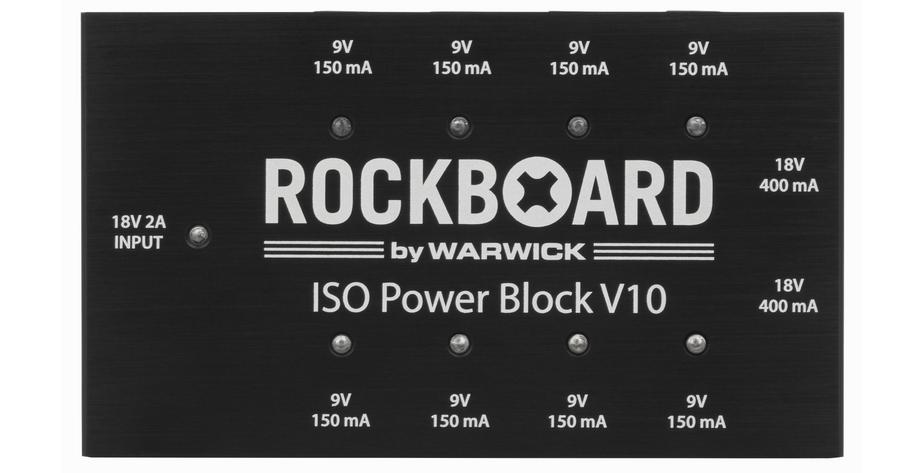

RockBoard ISO Power Block V10 – Isolated Multi Power Supply

Supplier
Warwick
Classification
Effect Pedals , Pedal Boards
Specifications
multi-power supply for effects pedals
10 transformer isolates power slots
advanved filter technology prevents high frequency noise
external transformer prevents low frequency interference
max. total current output 2.000 mA
8 x 9V power outputs @ 150 mA each, 2,1 x 5,5 mm barrel plug, polarity (-) center
2 x 18V power outputs @ 400 mA each ), 2,1 x 5,5 mm barrel plug, polarity (-) center
individual status LEDs and short circuit protection for all 9V DC slots
input voltage 18V DC
incl. 1 x power adapter 18V DC, 2A with exchangeable regional plug adapters (EU, UK, US/CA, AU/NZ), input voltage 100-240 V AC, , 2,1 x 5,5 mm barrel plug, polarity (-) center
incl. 10 x RockBoard Flat Power Cable, 60 cm for connecting effects pedals
incl. 1 x RockBoard Power Ace Voltage Doubler Y-Cable, 20 cm / 7 7/8″ (blue)
for bridging 2 slots and doubling/combining the volt output
incl. 1 x RockBoard Power Ace Current Doubler Y-Cable, 20 cm / 7 7/8″ (white)
for bridging 2 slots and doubling/combining the current output
dimensions (L x W x H) 123 x 70 x 26 mm / 4 13/16″ x 2 3/14″ x 1″
weight 180 g / 0,4 lb.
