EBS Magni 502, 210 Combo Amplifier
In Stock
In Stock
$2,254.99

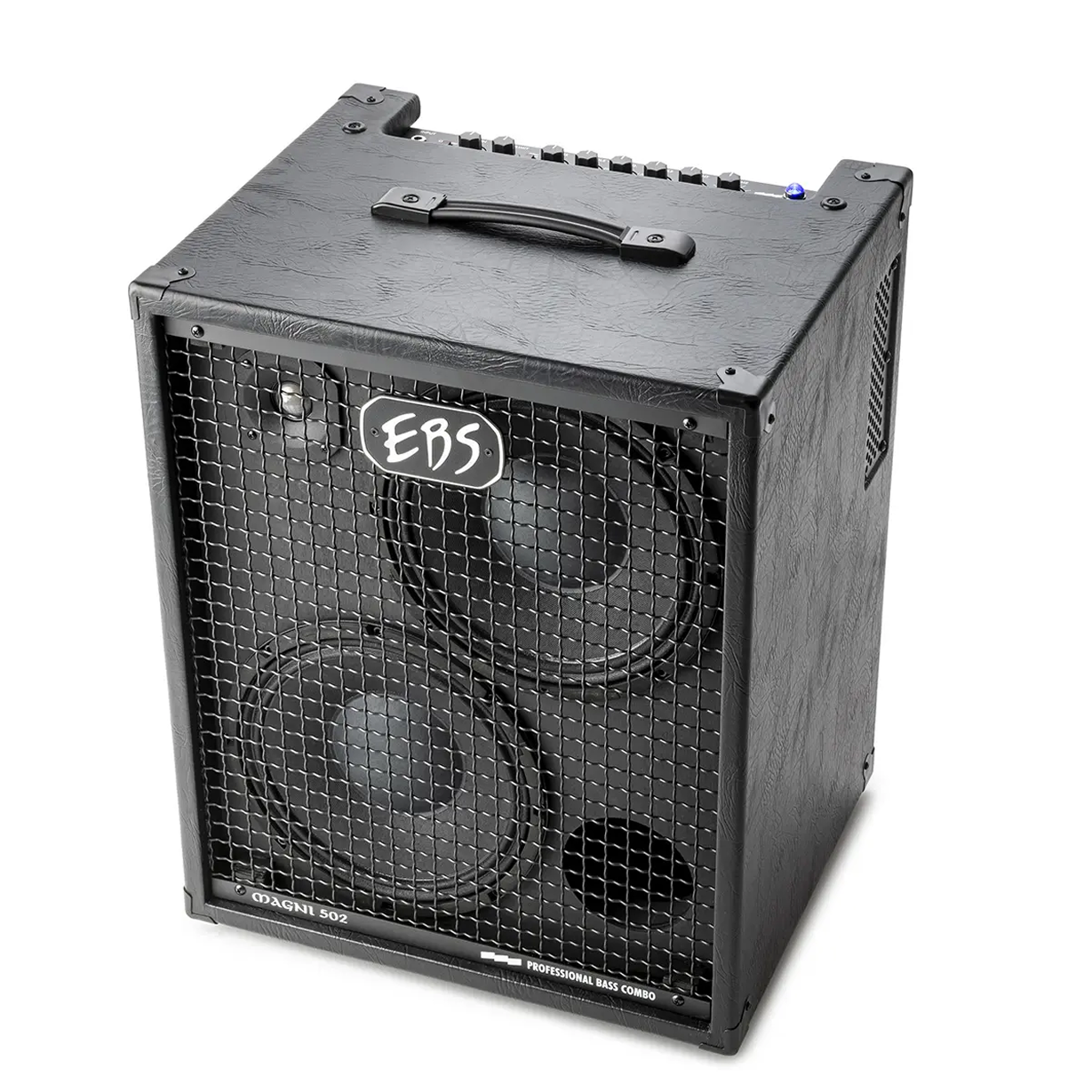

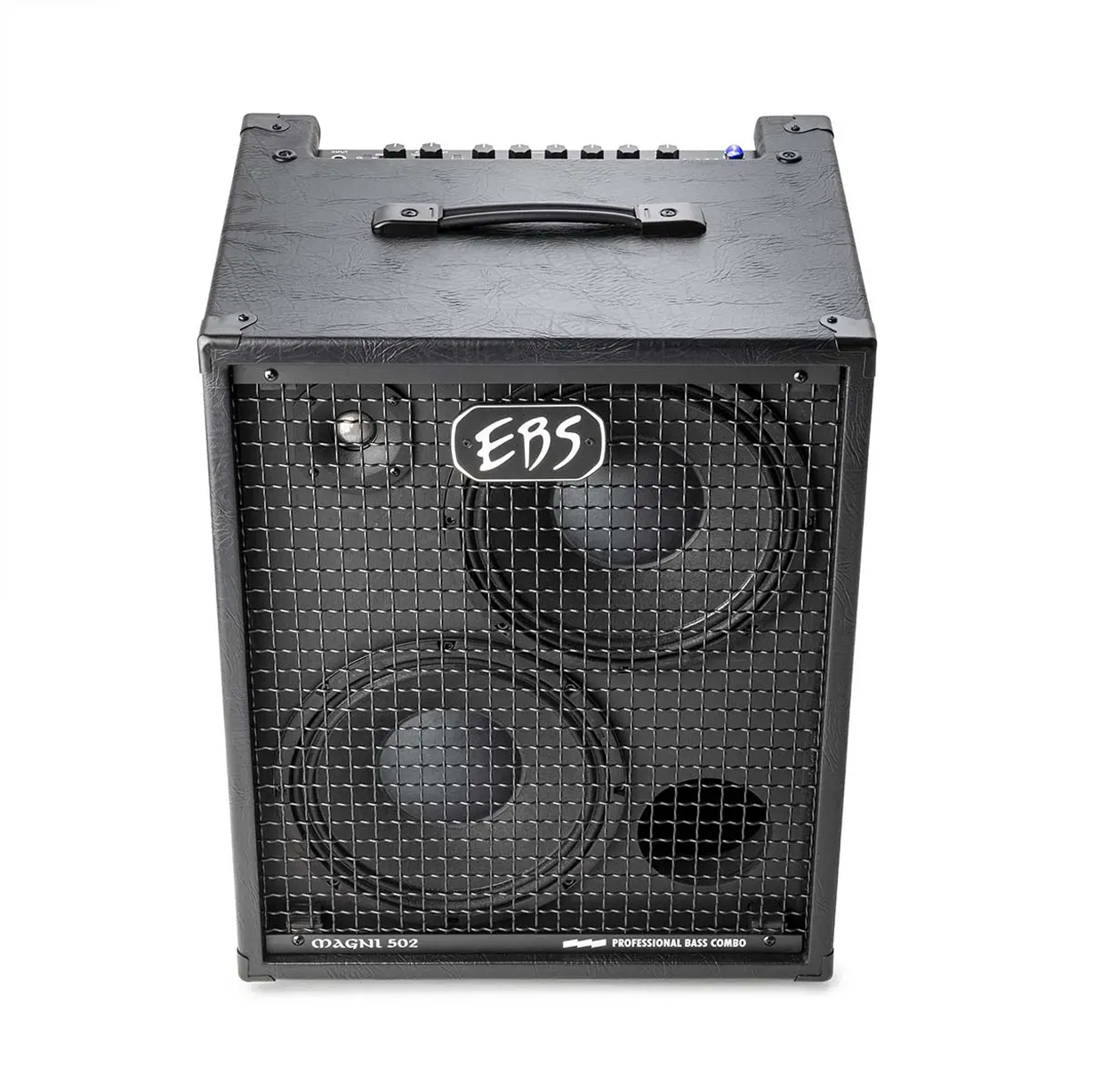

EBS Magni 502 Bass Combo
The EBS Magni 502 is a super lightweight bass combo with innovative design that delivers surprisingly big sound from a compact rig. Available in 2×10″ and 1×15″ models, it’s perfect for gigs and rehearsals without compromising tone or power.
Weighing just 15.4–16.5 kg thanks to neodymium speakers, it punches far above its weight. Front and rear porting creates a rich, room-filling sound, while the analog preamp and 500 W power amp offer flexible tone-shaping and expansion options. The Magni 502 also includes a balanced XLR out for seamless live or studio use.
Supplier
EBS
EBS
Classification
Combo Amplifier
Combo Amplifier
Model
Magni 502 210
Magni 502 210
Availability
In Stock
In Stock
Specifications
Features:
Weight: 15.4 kg (210-model)
Amp Design: Based on award-winning Reidmar amp design
Power Output: 500W
Clip Technology: EBS Soft Clip preserves solid bottom at high volume

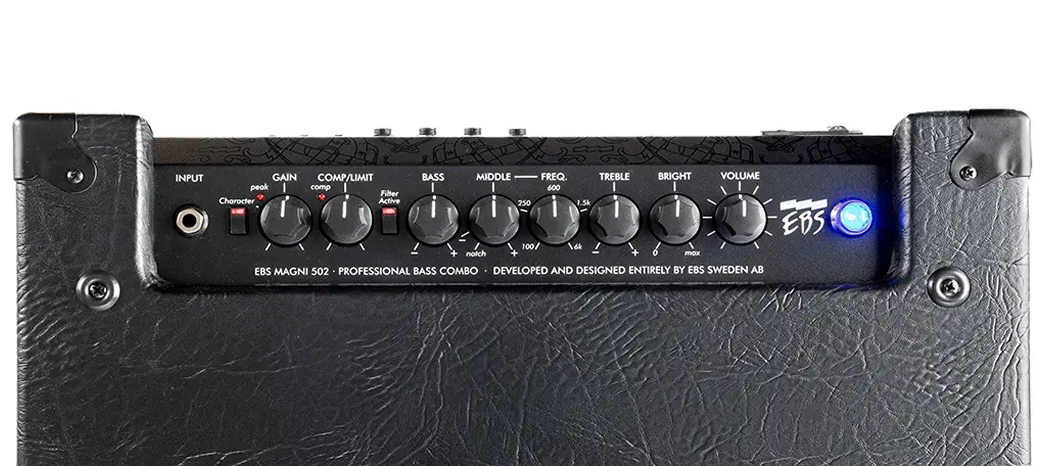

EQ: 4-band EQ with Bright and Notch filters
Compressor: Built-in Compressor/Limiter
Speakers: High-efficiency Neodymium speakers
Cabinet Design: Double-ported cabinet (front and back)
Power-to-Weight Ratio: Superior Configuration: 2×10″ speaker, with tweeter
Extension Cabinet: Speakon output for 4 to 8 ohm cab
Voltage: Switchable 120/230V
Balanced Output: XLR with ground lift
Headphones: Dedicated output
Line Out: Yes
Effects Loop: Yes
Accessories: Comes with dust cover
Specifications:
Input Impedance: 1 MΩ // 100 pF
Character Filter: Low: +7 dB @ 40 Hz, Mid: -2 dB @ 800 Hz, High: +3 dB @ 10 kHz
Compressor / Limiter: Gain 0 dB, Max Attenuation 24 dB, Compression Ratio max 3:1, Attack (80%) <10 ms, Release (80%) ~100 ms
Filters:
Bass: 12 dB/oct shelving ±18 dB @ 60 Hz
Mid: Bandpass 100–6000 Hz ±12–15 dB gain
Treble: Shelving ±18 dB @ 6 kHz
Bright: Shelving +15/-0 dB @ 10 kHz

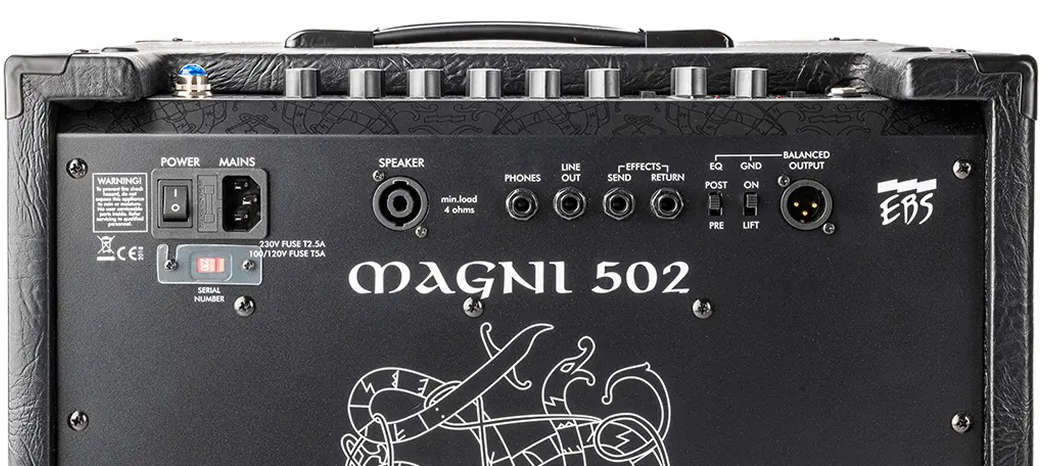

Balanced XLR Output
Nominal level -10 dBv, Frequency response 10–20,000 Hz (+0/-3 dB), Connections 1-GND, 2-Hot, 3-Cold, Options Ground Lift, Pre/Post EQ
Effect Loop: Signal level nominal -10 dBv, Gain unity (1:1), Output impedance 100 Ω, Input impedance >50 kΩ // 100 pF
Line Out: Output impedance 100 Ω, Signal level nominal 0 dBv
Phones Out: Recommended impedance 32–200 Ω
Power Amp: 500 W output, Minimum external cabinet load 4 Ω, Speakon output jack
Auxiliary Output: Max 500 W power, Mains protection T2.5A fuse (230 V), T5A fuse (100/120 V)
